Garrett GT3076R (310-525 HP)
Garrett GT3076R (310-525 HP)
Garrett GT3076R (310-525 HP)
Garrett GT3076R (310-525 HP)
Garrett GT3076R (310-525 HP)
Garrett GT3076R (310-525 HP)
Garrett GT3076R (310-525 HP)
Garrett GT3076R (310-525 HP)
Garrett

Garrett GT3076R (310-525 HP)

Available to order
No reviews
€2.065,95 inc. VAT
Turbine Housing Option (A/R, Inlet, Outlet)
Price Match
Product details
  • SKU GAR-836028-5003S-740902-0009

Share this product on your social networks :

Description
Horsepower:
310 - 525
Displacement:
2.0L - 3.5L

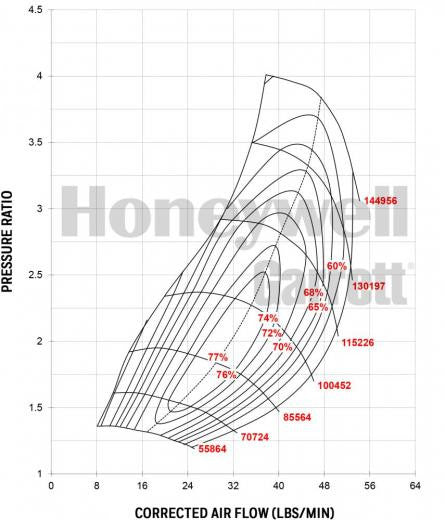

Super Core Reference Data Compressor Turbine
Super Core PN CHRA PN Inducer Exducer Trim A/R Inducer Exducer Trim
836028-5003S 836000-0003 57mm 76mm 56 0.60 60mm 55mm 84

Features:

  • Original GT series aerodynamics.
  • Internally wastegated turbine housing.
  • Non wastegated turbine housings available.
  • Ball bearing configuration with water cooled CHRA.
  • V-band turbine housing options.
Garrett® GT Series is the name that pioneered turbo technology and boosted drag racing and road racing teams to break hundreds of world records. The GT Series lineup is offered in both journal and ball bearing options, and sizes ranging from GT2052 to GT3582. The cast compressor wheels feature original GT Series aerodynamics and provide maximum durability and longevity. Internally wastegated turbine housing options are available in all GT Series sizes. Turbine kits are offered in open volute and twin scroll, and a variety of A/R and flange configurations. For any performance need, GT Series turbochargers have you covered.
